Description

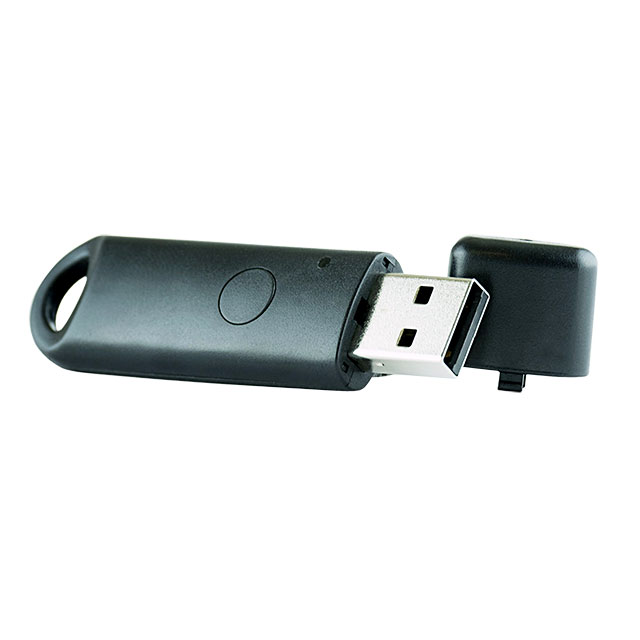

The Lascar EL-USB-LITE standalone data logger measures and stores over 4,000 temperature readings between -10°C and 50°C (14°F to +122°F) range at a resolution of 1°C (2°F) at a fixed 30-minute sample rate. The data logger is supplied with a CR1620 lithium coin cell, which can typically allow logging for up to a month. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.
Supplied with
CR1620 battery
Features and Benefits
The measurement ranges between -10°C and 50°C
Temperature measurement accuracy is ±2.5°C
Logging rates is 30 minutes
Number of readings per channel is 4080
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via red/green LEDs
Battery life is up to 1 month
Supplied complete with a CR1620 lithium coin cell
Logging rates is 30 minutes
Number of readings per channel is 4080
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via red/green LEDs
Battery life is up to 1 month
Supplied complete with a CR1620 lithium coin cell
Applications
Building and site monitoring
Cold chain in the food industry
Housing and business premises
Housing and business premises
|
Attribute
|
Value
|
|
|---|---|---|
| Brand | Lascar | |
| Number of Input Channels | 1 | |
| Model Number | EL-USB-LITE | |
| Measurement Parameters | Temperature | |
| Sensor Type | Temperature | |
| Interface Type | USB | |
| Data Logger Type | Temperature | |
| Maximum Temperature Measurement | +50 °C | |
| Power Source | Battery | |
| Best Temperature Measurement Accuracy | ±2.5 °C | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +50°C | |
| Number of Readings Per Channel | 4080 | |
| Temperature Measurement Resolution | 1°C | |
| Battery Type | CR1620 | |
| Alarm | Yes | |
| Includes | Battery | |
| Battery Life | 1 Month |
