Description

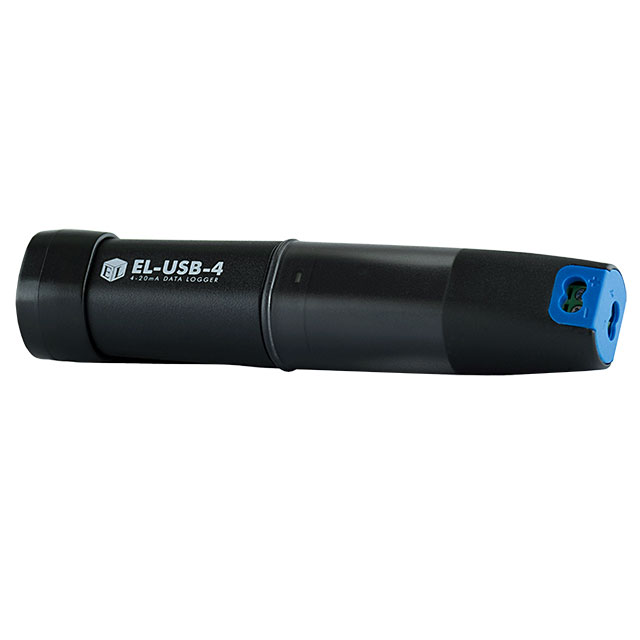

The Lascar EL-USB-4 standalone data logger measures and stores over 32,000 current loop readings over a 4mA to 20mA DC range at a resolution of 0.05mA DC. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis. The data logger is also issued with a 4mA to 20mA cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips.
Supplied with
1/2 AA battery, measurement leads and wall mount clip.
Features and Benefits
The current loop readings over a 4mA to 20mA DC range
Current measurement accuracy is ±0.1°%
Logging rates between 1 second and 12 hours
Number of readings per channel is 32510
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via LEDs
Battery life is up to 3 years
Supplied with a 1/2AA lithium metal battery
Export to Excel functionality
Logging rates between 1 second and 12 hours
Number of readings per channel is 32510
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via LEDs
Battery life is up to 3 years
Supplied with a 1/2AA lithium metal battery
Export to Excel functionality
| Brand | Lascar | |
| Model Number | EL-USB-4 | |
| Number of Input Channels | 1 | |
| Measurement Parameters | Current | |
| Sensor Type | Current Sensor | |
| Interface Type | USB | |
| Data Logger Type | Current | |
| Power Source | Battery | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +80°C | |
| Maximum Current Measurement | 20mA dc | |
| Alarm | Yes | |
| Battery Type | 1/2AA | |
| Includes | 1/2 AA Battery | |
| Number of Readings Per Channel | 32000 | |
| Best Current Measurement Accuracy | ±1 % | |
| Current Measurement Resolution | 0.05 mA dc | |
| Dimensions | 26.8 (Dia.) x 98mm | |
| Battery Life | 3 Years |
