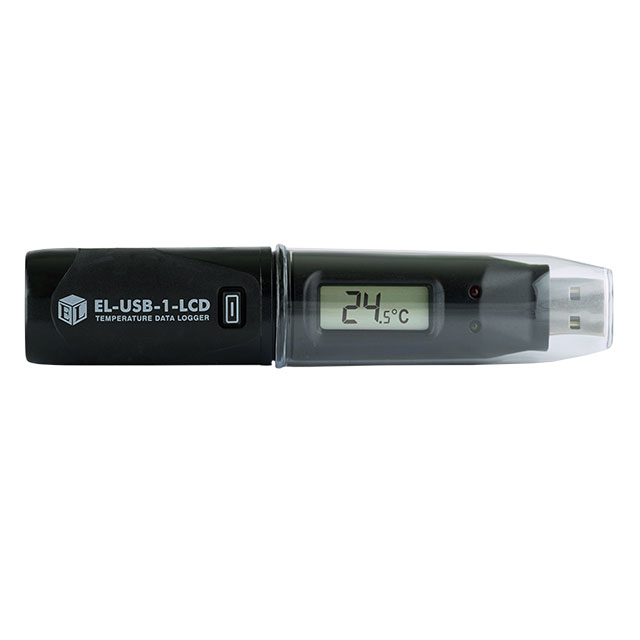

Lascar EL-USB-1-LCD Temperature Data Logger, USB, 1 Input Channel(s)

The Lascar EL-USB-1-LCD standalone data logger measures and stores over 16,000 temperature readings between -35°C and 80°C (-31°F to 176°F) with a resolution of 0.5°C (0.5°F). The high contrast LCD can show a variety of temperature information. At the touch of a button, the user can cycle between the current, maximum and minimum stored values […]

Description

The Lascar EL-USB-1-LCD standalone data logger measures and stores over 16,000 temperature readings between -35°C and 80°C (-31°F to 176°F) with a resolution of 0.5°C (0.5°F). The high contrast LCD can show a variety of temperature information. At the touch of a button, the user can cycle between the current, maximum and minimum stored values for temperature. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Supplied with
1/2 AA battery and wall mount clip



Features and Benefits

The measurement ranges between -35°C and 80°C (-31 and 176°F)

Temperature measurement accuracy is ±0.5°C
Logging rates between 10 seconds and 12 hours
Number of readings per channel is 32510
Immediate and delayed logging start
User-programmable alarm thresholds
High contrast LCD with two and a half digit temperature display function
Status indication via red/green LEDs
Battery life is up to 2 years
Supplied with a 1/2AA lithium metal battery
Export to Excel functionality



Applications

Facilities management

Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions



Certifications

IP67 Rated



Attribute
Value
Brand Lascar
Model Number EL-USB-1-LCD
Number of Input Channels 1
Sensor Type Temperature
Measurement Parameters Temperature
Interface Type USB
Data Logger Type Temperature
Maximum Temperature Measurement +80 °C
Power Source Battery
Best Temperature Measurement Accuracy ±0.5°C
IP Rating IP67
Minimum Operating Temperature -35°C
Maximum Operating Temperature +80°C
Display Type LCD
Dimensions 25 x 120mm
Number of Readings Per Channel 32510
Alarm Yes
Battery Life 2 Years
Temperature Measurement Resolution 0.5°C
Includes 1/2 AA battery and wall mount clip
Battery Type 1/2AA
×
